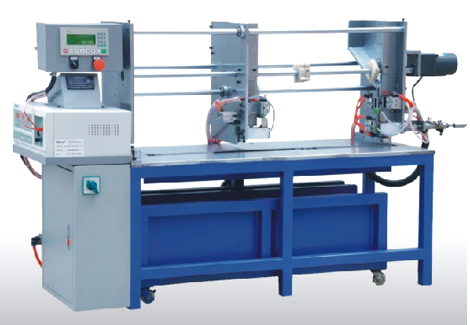

DIAD TESTER TL - 253

DIAD TESTER TL - 253

Mainly used to test pressure and resistance of the shrinked linear tube.

FUNCTIONS :

1. Test pressure and resistance automatically, select the reject automatically.
2. PLC automatic controlled, easy to operate, no operator is required.

MAIN TECHNICAL PARAMETERS

1. Power supply: single phase 220V 50Hz 500W
2. Air supply: 5 -7 kg/cm2
3. EIficiency: 5000- 8000 pcs/8h
4. Applicable tube diameter: Φ6mm - Φ 12 mm
5. Applicable tube length: 150 mm - 800mm ( custom-made)
6. Size ( L * W * H ) : 1700*600*1000 ( mm )
7. Weight: 230kg
