"The Displayed machines are specifically for the manufacturer of Tubular Heating Elements"

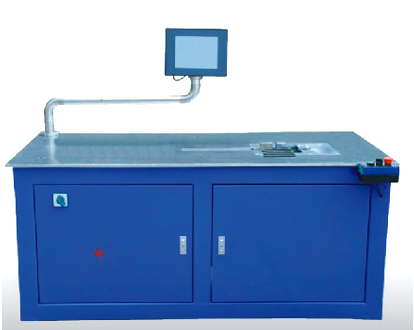

Shaped Tube Bending Machine TL -185M


Shaped Tube Bending Machine TL -185M
Is an intelligent machine which can bend various shapes of tubes.

Functions :

1. 14" touch screen, operation instruction is attached.

2. PLC automatically controlled, change the parameters according to your requirement.

3. Servo motor controls bending and feeding, the speed, angle and length are all adjustable.

4. Pneumatic clamping. can bend 1 -4pcs tubes at a time.


Main Technical Parameters

1. Power supply: Single-phase nov, 50Hz

2. Rated power: 4KW

3. Air supply: 5 -7kg/cm2

4. Applicable tube diameter: Φ6.0mm - Φ1Omm

5. Size (LxWxH) :1650x900x1450 (mm)

6. Weight: 1000kg
