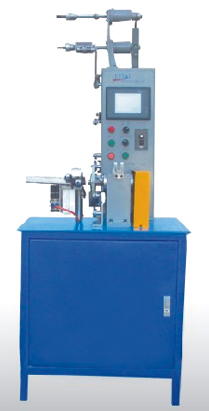

AUTOMATIC COIL WINDING MACHINE TL -110A

AUTOMATIC COIL WINDING MACHINE TL -110A

Is used to wind metal wire to coil heater. It can be used for single wire and double wire with different diameter.

FUNCTIONS :

1. The Mitsubishi transducer controls the main shaft speed. It can make the coil continuously and cut automatically.
2. It is cut by pneumatic cylinder. It can control the number of turns and with clean cut end.
3. The machine with small size, high accuracy, easy operation and high production.

MAIN TECHNICAL PARAMETERS

1. Vollage: Single phase AC220 ± 10%, 50Hz
2. Main shaft rotation speed: 0 - 2134rpm
3. Roller rotation speed: 0 -74rpm
4. Roller: inner hole diameter 14mm, outer dia 100 - 200mm
5. Collet inner hole: Φ6.0 +0.05+0.01
6. Motor power: main shaft motor370W/1340
7. Roller motor: 60W/1400rpm
8. Double roller motor: 120W/1400rpm
