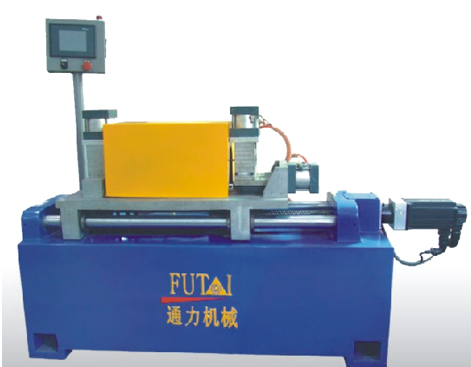

CIRCLE TUBE CUTTER TL -158

CIRCLE TUBE CUTTER TL -158

Mainly used after tube making machine to cut the tube.

FUNCTIONS :

1. Test the speed and cut the tube automatically.
2. PLC automatically controlled, touch screen operation.
3. Encoder read the data of length which assure the precision of cutting length.
4. Even tube end and little burr.

MAIN TECHNICAL PARAMETERS

1. Power supply: Triphase 380V 50Hz
2. Air supply: 5-7 kg/cm2
3. Rated power: 2.8KW
4. Applicable tube diameter: Φ5mm-Φ12mm ( It can be custom-made)
5. Applicable tube length: 300mm -6000mm
6. Size (L* W * H) : 1800*700*1500 (mm)
7. Weight : 850kg
