"The Displayed machines are specifically for the manufacturer of Tubular Heating Elements"

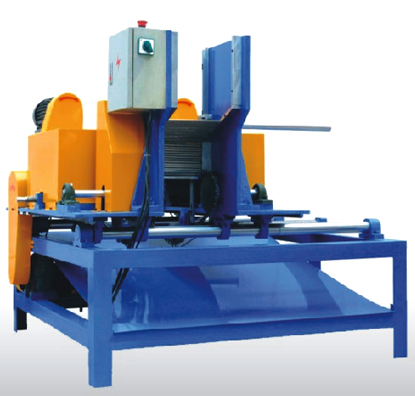

Automatic Deburring Machine TL -109

Automatic Deburring Machine TL -109
Mainly used to deburr and chamfer tube ends.

Functions :

1. Feeding automatically by chain, deburr both ends at the same time.

2. Deburr both inside and outside of tube ends at the same time by high-speed steel wire wheel.

3. Easy to operate and adjust the tube length.

Main Technical Parameters

1. Power supply: Triphase 380V, 50Hz

2. Rated power: 3.5KW

3. Efficiency: 60000pcs/l8h

4. Applicable tube diameter: Φ6mm - Φ12mm (over this range can be custom-made)

5. Applicable tube length: 1OOmm -750mm

6. Size (LxWxH) : 1900x1800x1200(mm)

7. Weight: 580kg
