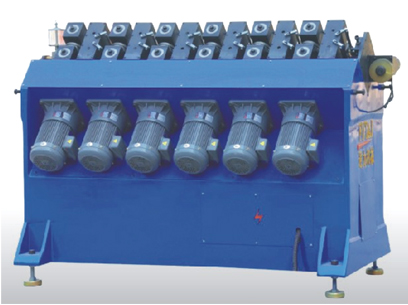

Tube Rolling Machine TL -101


Tube Rolling Machine TL -101
TL - 101 Tube rolling machine is used for compacting elements in order to increase the density of MgO. It has been well-received in France, Japan and other countries.

Functions :
1.The frame of this machine is made out of pig iron casting. The rocker die and tank are integral linear cutting. This machine is also equipped with    fine-tuning dial, automatically removing sundries device and automatically cooling system.

2. According to the tube size and your special requirements, we have two types of motor of pinch roller for your choice. They are non-uniform speed    (different speed) and uniform speed. The former make the tube better ductility, while the latter applies 10 the lube with large diameter.

3. When the tube specifications changed, we only need to replace a set of pinch rollers. The pinch rollers can be classified into two categories: high     speed steel and tungsten carbide alloy.

4. Automatically stop when clogging.

5. This machine is of small size, low noise, convenient adjustments.

6. Applicable tube: Copper, iron, aluminum, stainless steel, etc.

Main Technical Parameters
1. Tube diameter after compressing : Φ5.2mm - Φ19.0mm

2. The max. diameter before compressing : Φ21mm

3. The min. length of tube : 110mm

4. Efficiency : 18m/min

5. After compressing, the straightness can reach : -1:300 and the
    roundness  can reach : 0 0.07
