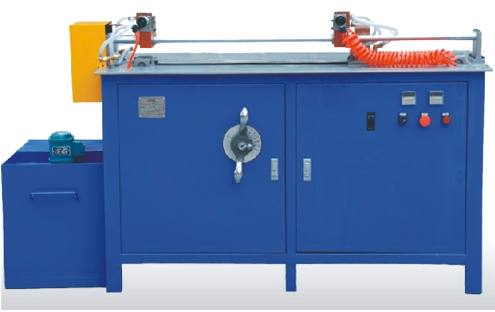

Partial Annealing Machine TL -113

1. Heating the tube surface by low voltage high-current short so that the MgO & heater will get little heat.

2. Time relay controls the annealing time.

3. Eight kinds of power and voltage can apply to various specifications of tubes.

4. Pneumatic clamping, safe and convenient.

5. Flexibie design of collet,. There will be little bend when heat extension.

1. Power supply : Triphase 380V, 50Hz

2. Air supply : 5-7 kg/cm²

3. Rated power: 30KW

4. Applicable tube diameter: Φ6mm-Φ20mm

5. Applicable tube length: 150 mm -1000 mm

6. Size ( LxWxH ) : 1500x600x 1500(mm)

7. Weight : 500kg
