"The Displayed machines are specifically for the manufacturer of Tubular Heating Elements"

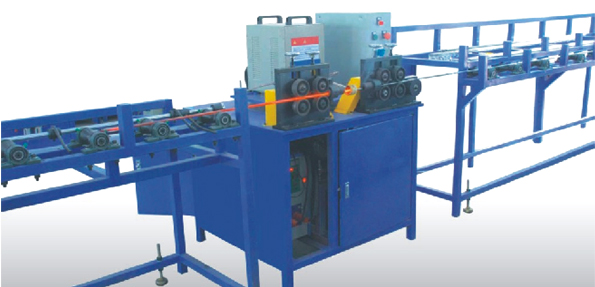

High Frequency Annealing Machine TL - 230

High Frequency Annealing Machine TL - 230
Is used to anneal round, square,lineat metal elements.

Functions :

1. High efficiency, little pollution, stable quality and safe.

2. PLC automatically controlled, easy to operate.

3. Load material automatically, the speed can be adjustable, easy to change specification and maintain.


Main Technical Parameters

1. Power supply: Triphase380V 50Hz.

2. Air supply: 5-7kg/cm2

3. Rated power: 30KW.

4. Size(LxWxH): 1700x 1200x1650(mm).

5. Weight: 850kg.

VIDEO
TL-230 Annealing Machine - Element
TL-230 Annealing Machine - Empty Tube
