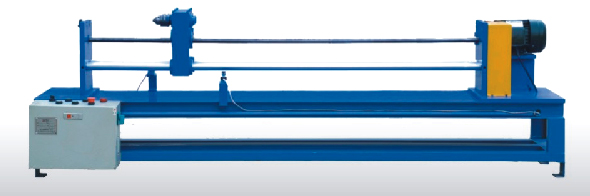

Dual Axis Strip Reeling Machine TL -126


Dual Axis Strip Reeling Machine TL -126
Mainly used to reel radiation fins round the tubes.

Functions :
1. Controlling the segment pitch by change gears. It is very precise and stable.

2. Two tubes at a time, high efficiency can up to 1.6~1. 7m/min.(5mm segment pitch).

3. Easy to operate and stable quaiity.

Main Technical Parameters
1. Power supply: Triphase 380V, 50Hz.

2. Rated power: 750W.

3. Applicable tube diameter: <ll6mm-<ll13mm(over this range can be custom-made)

4. Appiicable tube length: 200mm-1800mm (above 1800mm can be finished by repeating the movement on several segments)

5. Size( LxW x H) :2500 x 750x 800(mm).

6. Weight: 300kg.
