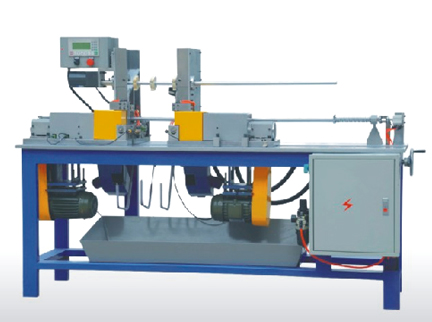

| Is used to turn the tube ends according to the preseted length. chamfer and dig the powder of tube ends automatically. |
| |
| Functions : |
1. PLC automatically controlled, human-computer interface. One man can operate three or four machines simultaneously.
2. The elements are automatically loaded, and then centered so the same amount will be cut from each end, thus ensuring that the original length can be maintained.
3. Show how to clear the error automatically. |
| |
| Main Technical Parameters : |
1. Power supply : Triphase 380V, 50Hz
2. Rated power : 1.6KW
3. Air supply : 5 -7kg/cm2
4. Applicable tube diameter : Φ5.2mm - Φ 15mm
5. Applicable tube length : 110 - 1500mm
6. Efficiency : Above 5500pcs/8h(below tube length 500mm)
7. Size (LxWxH) : 2100x850x1350(mm)
8. Weight : 450kg |
| |
|
| mainly used to turn the ends of compressed tubes, and also can be used to turn and chamfer all kinds of tubes and rods in the hardware industry. |
| |
| Functions : |
1. Pneumatic clamping and feeding.
2. Cutter rotate while the element not. safe and convenient operation.
3. Hydraulic speed governor control the turning speed,stable quality.
|
| |
| Main Technical Parameters : |
1. Power supply: Triphase 380V, 50Hz
2. Rated power: O.8KW
3. Air supply: 5 -7kg/cm2
4. Applicable tube diameter: Φ6mm - Φ12mm
5. Applicable tube length: ≥100mm
6. Efficiency: Above 5000pcs/8h(below tube length 500mm)
7. Size (LxWxH) :800x550x1000(mm)
8. Weight: 130kg |
| |
|
