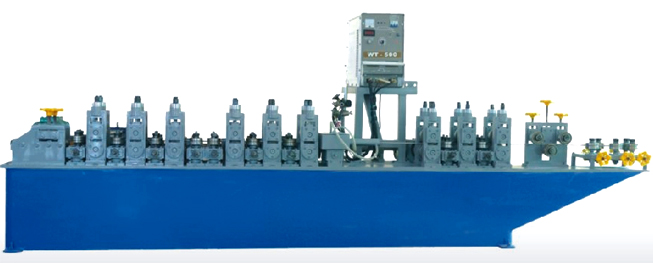

Automatic Tube Making Machine TL -102


Automatic Tube Making Machine TL -102
Mainly used to weld a roll of stainless steel strip into a tube.

Functions :

1. The frame of machine is made of excellent steel plate and of stable structure.

2. PLC automatically controlled, human-computer interface.

3. Control the speed by Mitsubishi transduction. The tube making speed can be adjustable.

4. Any error, abnormity or lack of material, the machine will alarm automatically.


Main Technical Parameters

1. Power supply : TRiphase 380V 50Hz

2. Rated Power ; 16.5KW

3. Water Supply : 190 liters /hr

4. Argon Supply : 400-700 liters /hr

5. Hydrogen Supply : 20-350 liters /hr

6. Applicable tube diameter : Φ4mm - Φ16mm (over this range can be custom-made)

7. Applicable tube thickness : 0.17mm - 1.0mm

8. Tube making speed : 6-18m/min

9. Size (LxWxH) : 4000x1100x1700 (mm)

10. Weight : 2000kg
