"The Displayed machines are specifically for the manufacturer of Tubular Heating Elements"

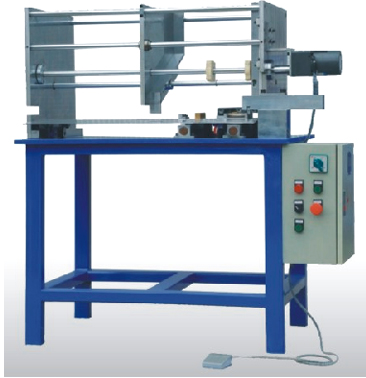

Automatic Stamping Machine TL -127


Automatic Stamping Machine TL -127
Mainly used to mark the straight tubes in circle or in linear.

Functions :

1. Automatic feeding, no operator is required.

2. Tube diameter, length, print location can be adjustable.

3. Easy to operate, stable quality


Main Technical Parameters

1. Power supply: Single-phase 220V, 50Hz

2. Rated power: 200W

3. Air supply: 5-7kg/cm2

4. Applicable tube diameter: Φ5mm - Φ20mm

5. Applicable tube length: 150mm -700mm (over this range can be custom-made)

6. Efficiency: 15000pcs - 20000pcs/8H

7. Size (L* W * H) : 1150*630*1200(mm)

8. Weight: 230kg
