"The Displayed machines are specifically for the manufacturer of Tubular Heating Elements"

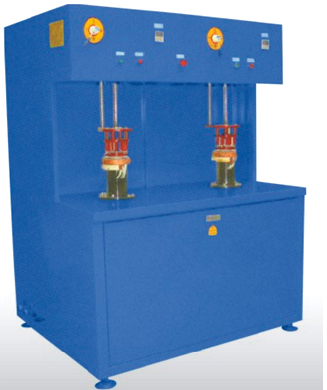

Automatic Soldering Machine TL - 350


Automatic Soldering Machine TL - 350
It is mainly used for welding the round Pot woth dia 250 to 500mm and square pot with dia300 to 500mm

Functions :

1. Application range: electric kettle, coffeepot. fryer and other products.

2. 0peration mode: manual time control.

3. Small size, compact in structure, easy operation and good design.

4. High production, stable performance, good welding. It can work 24hours continuously.

5. It can also equip with whole set cooling system (including water tank, pump and corresponding spare part)

6. Air supply control to avoid pot deforming for heating. It can make the weld joint better and better quality.


Main Technical Parameters

1. Power suppiy: tri-phase 380V 50Hz

2. Power: 25KW, 30KW, 40KW, 60KW

3. Water supply: water pressure 2-3kgf/cm2, input water temperature< 30oC, water flux: 2x40L/MIN

4. Air supply: 4-6kgf/cm2
